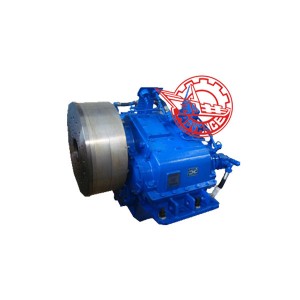

HCQ1400 Marine Gearbox Main Data
|
Input speed |
1000-2100r/min |
||
|
Reduction ratio |
1.517、2.00、2.476 |
Trans. capacity |
1.03kw/r/min |
|
3 |
0.9kw/r/min |
||
|
Control way |
Push-and-pull flexible shaft, electrically |
||
|
Rated thrust |
110KN |
||
|
Center distance |
340mm |
||
|
L×W×H |
938×1210×1027mm |
||
|
Net weight |
1430kg |
||
|
Flywheel |
Special |
||
|
Bell housing |
Special |
||
