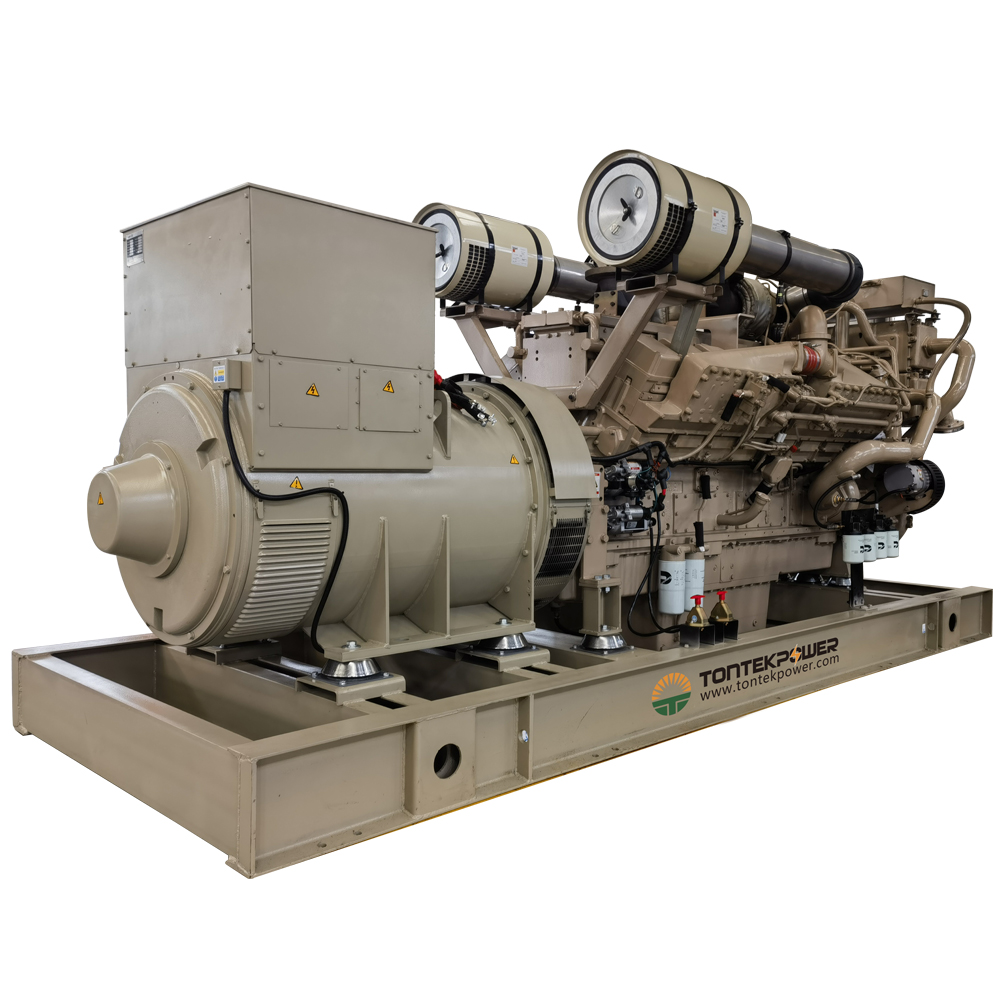

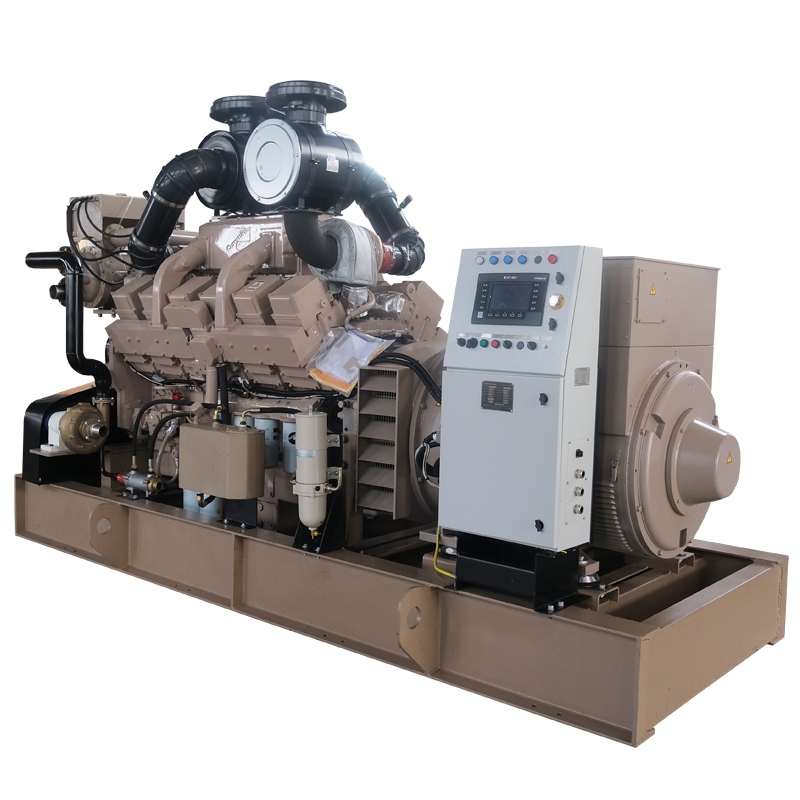

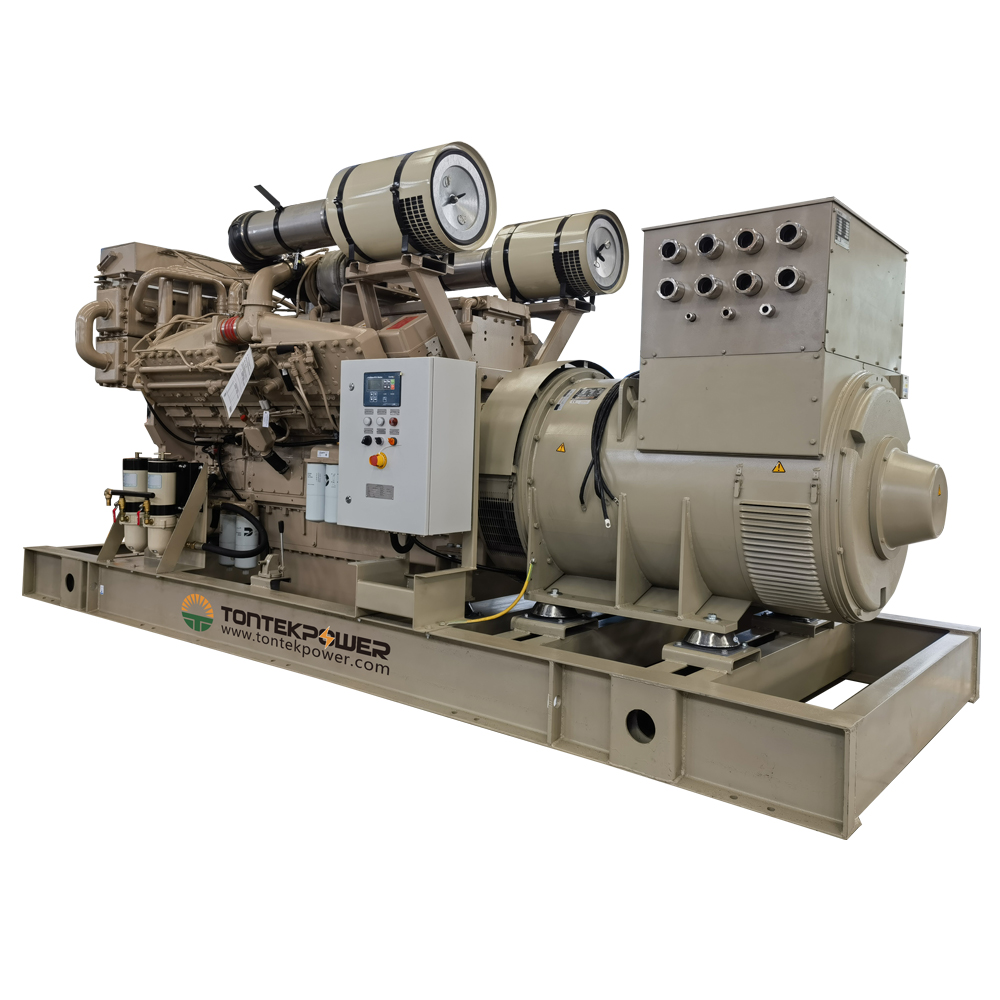

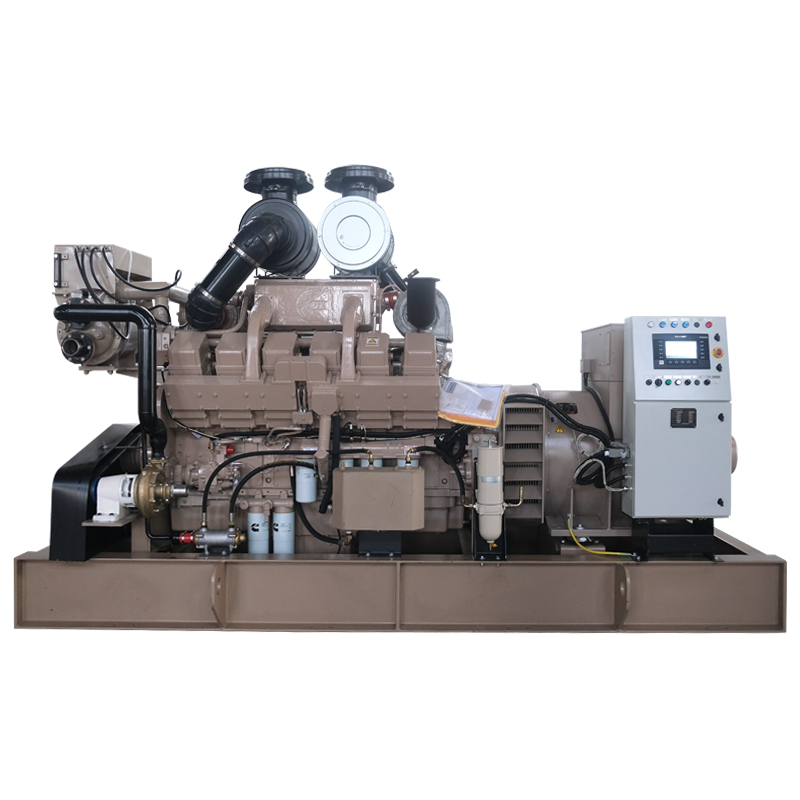

Cummins marine diesel generator


  • Min.Order Quantity: 1 unit
  • Supply Ability: 100 units per month
  • Product Detail

    50Hz/1500rpm

    60Hz/1800rpm

    CUMMINS is a leading global power equipment manufacturer. It devotes into design, manufacturing and distribution on the engines and related technologies including fuel systems, control systems, intake air treatment, filtration systems, exhaust gas treatment systems and power systems, and provides corresponding after-sales services. The displacement of CUMMINS products covers from 3.9 to 50 liters, and the power range is 24 to 1429KW.

    CUMMINS marine diesel generator components are Dongfeng CUMMINS (DCEC) and Chongqing CUMMINS (CCEC). Dongfeng CUMMINS (DCEC) is mainly committed to low-power products, and its power range is 24 to 419KW, while Chongqing CUMMINS (CCEC) focuses on the engines with power coverage from 254 to 1429KW.

    The main features of CUMMINS marine diesel generator:

    1. Advanced design and sophisticated manufacturing, adapt to a variety of severe working  conditions, high strength, strong heavy load operation capacity.

    2. The cylinder block and cylinder head choose an integrated design, which prevents the occurrence of engine water leakage and oil leakage, the parts are 40% fewer than other similar engines, and the failure rate is greatly reduced.

    3. Excellent reliability. Selecting forged steel camshaft and crankshaft, high-strength cylinder block design, many parts are cast on the cylinder block, with high rigidity, high pressure resistance and longer service life.

    4. Rotor high-pressure fuel pump, less energy loss, more stronger power, lower fuel consumption, and effectively reduce noise.

    5. The cylinder bore adopts the platform net honing design. The perfect geometric structure effectively prevents the oil leakage. The new piston ring assembly and the gasket hemming molding are used to reduce the oil loss.

    6. Three-stage fuel filtration ensures a balanced level of power dispersion, protects the main components of the fuel system, and extends engine life to the maximum.

    7. CUMMINS PT fuel system, ultra-high injection pressure, make sure good atomization and full combustion.

    8.Efficient Holset exhaust turbocharger can ensure more sufficient air intake, improve engine efficiency, further improve combustion, reduce engine fuel consumption, low speed response and strong power.

    9. All types of parts have strong versatility, high degree of serialization, easy for maintenance.

    10. Both the cylinder block and the cylinder head select a built-in pressure lubrication channel, which has a compact structure and low failure rate.


  • Previous:
  • Next:

  • ■ CCS,BV,ABS,RINA,KR CERTIFICATE

    ■ IMO EMISSION CERTIFICATE

    ■ STAMFORD,LEROY-SOMER,MARATHON MARINE ALTERNATOR AS OPTIONAL

    ■ HEAT EXCHANGER COOLED AND KEEL COOLEDAS OPTIONAL

    Generator spec.

    Engine Spec.

     Dimensions

    Weight

    Model

    Rated power

    Frenquency/voltage

    Engine model

    Power/Speed

    kW

    kVA

    Hz/ V

    kW/RPM

    L×W×H(mm)

    (kg)

    CCFJ40J-WTP

    40

    50

    50/400

    4BTA3.9-GM47

    47/1500

    1670*850*1270

    800

    CCFJ50J-WTP

    50

    62.5

    50/400

    6BT5.9-GM83

    83/1500

    1900*900*1300

    1000

    CCFJ64J-WTP

    64

    80

    50/400

    6BT5.9-GM83

    83/1500

    1900*900*1300

    1100

    CCFJ75J-WTP

    75

    93.8

    50/400

    6BTA5.9-GM100

    100/1500

    1900*900*1300

    1250

    CCFJ90J-WTP

    90

    112.5

    50/400

    6BTA5.9-GM100

    100/1500

    2020*900*1300

    1300

    CCFJ100J-WTP

    100

    125

    50/400

    6CT8.3-GM115

    115/1500

    2080*900*1360

    1650

    CCFJ120J-WTP

    120

    150

    50/400

    6CT8.3-GM115

    115/1500

    2120*900*1360

    1700

    CCFJ150J-WTP

    150

    187.5

    50/400

    6CTA8.3-GM155

    155/1500

    2220*1000*1790

    1720

    CCFJ160J-WTP

    160

    200

    50/400

    6LTAA8.9-GM200

    200/1500

    2250*1000*1790

    1750

    CCFJ200J-WTP

    200

    250

    50/400

    N855-DM

    240/1500

    2760*1000*1790

    2700

    CCFJ250J-WTP

    250

    312.5

    50/400

    N855-DM

    284/1500

    2760*1000*1790

    2800

    CCFJ280J-WTP

    280

    350

    50/400

    N855-DM

    317/1500

    2998*1000*1790

    2950

    CCFJ300J-WTP

    300

    375

    50/400

    K19-DM

    358/1500

    2998*1000*1790

    3360

    CCFJ350J-WTP

    350

    437.5

    50/400

    K19-DM

    410/1500

    3170*1000*1920

    3480

    CCFJ400J-WTP

    400

    500

    50/400

    K19-DM

    448/1500

    3170*1000*1920

    3650

    CCFJ680J-WTP

    680

    850

    50/400

    K38-DM

    746/1500

    4050*1500*2480

    7200

    CCFJ800J-WTP

    800

    1000

    50/400

    K38-DM

    880/1500

    4100*1500*2480

    7350

    CCFJ1000J-WTP

    1000

    1250

    50/400

    K50-DM

    1097/1500

    4500*1500*2480

    9500

    Generator spec.

    Engine Spec.

     Dimensions

    Weight

    Model

    Rated power

    Frenquency

    /voltage

    Engine model

    Power/Speed

    kW/RPM

    L×W×H(mm)

    (kg)

    kW

    kVA

    Hz/ V

    CCFJ40J-WTP

    40

    50

    60/440

    4BTA3.9-GM65

    65/1800

    1670*850*1270

    700

    CCFJ50J-WTP

    50

    62.5

    60/440

    4BTA5.9-GM65

    65/1800

    1760*900*1300

    720

    CCFJ64J-WTP

    64

    80

    60/440

    6BT5.9-GM100

    100/1800

    2020*900*1300

    950

    CCFJ75J-WTP

    75

    93.8

    60/440

    6BT5.9-GM100

    100/1800

    1980*900*1300

    980

    CCFJ90J-WTP

    90

    112.5

    60/440

    6BTA5.9-GM120

    120/1800

    1980*900*1300

    1000

    CCFJ100J-WTP

    100

    125

    60/440

    6BTA5.9-GM120

    120/1800

    2100*810*1360

    1080

    CCFJ120J-WTP

    120

    150

    60/440

    6CTA8.3-GM175

    175/1800

    2120*900*1360

    1350

    CCFJ150J-WTP

    150

    187.5

    60/440

    6CTA8.3-GM175

    175/1800

    2180*900*1360

    1420

    CCFJ250J-WTP

    250

    312.5

    60/440

    N855-DM

    287/1800

    2880*1000*1790

    2560

    CCFJ280J-WTP

    280

    350

    60/440

    N855-DM

    313/1800

    2880*1000*1790

    2650

    CCFJ350J-WTP

    350

    437.5

    60/440

    K19-DM

    425/1800

    3360*1000*1920

    3350

    CCFJ400J-WTP

    400

    500

    60/440

    K19-DM

    485/1800

    3360*1000*1920

    3400

    CCFJ450J-WTP

    450

    562.5

    60/440

    K19-DM

    507/1800

    3360*1100*2480

    3520

    CCFJ700J-WTP

    700

    875

    60/440

    K38-DM

    821/1800

    3760*1500*2480

    6950

    CCFJ800J-WTP

    800

    1000

    60/440

    K38-DM

    970/1800

    3760*1500*2480

    7100

    CCFJ1150J-WTP

    1150

    1438

    60/440

    K50-DM

    1291/1800

    4500*1500*2480

    9200
