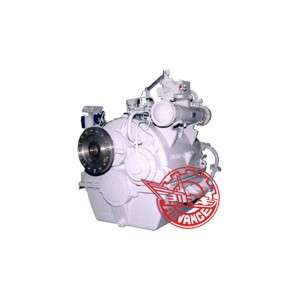

GWK–series Marine Gearbox
|
Model |
Input Speed (r/min) |
Reduction Ratio (i) |
Trans. Capacity (kW/r·min-1) |
Rated Thrust (kN) |
Net Weight (kg) |
|
GWK28.30 |
400-1800 |
2.0 |
0.397 |
80 |
1130 |
|
2.5566 |
|||||
|
3.0 |
|||||
|
3.5714 |
|||||
|
4.0526 |
|||||
|
GWK30.32 |
400-1800 |
1.9688 |
0.537 |
100 |
1300 |
|
2.5185 |
|||||
|
2.9583 |
|||||
|
3.5238 |
|||||
|
4.0 |
|||||
|
GWK32.35 |
400-1800 |
2.0 |
0.684 |
113 |
2080 |
|
2.5556 |
|||||
|
3.0 |
|||||
|
3.5714 |
|||||
|
4.0526 |
|||||
|
GWK36.39 |
400-1800 |
2.0323 |
0.919 |
140 |
2250 |
|
2.4815 |
|||||
|
2.9167 |
|||||
|
3.4762 |
|||||
|
3.9474 |
|||||
|
GWK39.41 |
400-1600 |
2.0 |
1.169 |
175 |
2960 |
|
2.5357 |
|||||
|
2.960 |
|||||
|
3.50 |
|||||
|
3.95 |
|||||
|
GWK42.45 |
400-1600 |
1.9730 |
1.573 |
220 |
3630 |
|
2.5484 |
|||||
|
2.9286 |
|||||
|
3.5833 |
|||||
|
4.0 |
|||||
|
GWK45.49 |
400-1400 |
2.0323 |
2.051 |
270 |
4840 |
|
2.4815 |
|||||
|
3.0870 |
|||||
|
3.4762 |
|||||
|
3.9474 |
|||||
|
GWK49.54 |
400-1200 |
1.9714 |
2.647 |
284 |
7300 |
|
2.4667 |
|||||
|
3.0 |
|||||
|
3.5217 |
|||||
|
3.9524 |
|||||
|
GWK52.59 |
400-1200 |
1.9714 |
3.448 |
300 |
8120 |
|
2.4667 |
|||||
|
3.0 |
|||||
|
3.5217 |
|||||
|
3.9524 |
|||||
|
GWK60.66 |
400-1200 |
2.0 |
4.625 |
450 |
14000 |
|
2.536 |
|||||
|
2.96 |
|||||
|
3.5 |
|||||
|
3.95 |
|||||
|
GWK66.75 |
300-900 |
1.9714 |
6.99 |
700 |
16500 |
|
2.4667 |
|||||
|
3.0 |
|||||
|
3.5217 |
|||||
|
3.9524 |
|||||
|
GWK70.76 |
300-900 |
1.941 |
8.111 |
750 |
19000 |
|
2.536 |
|||||
|
3.0 |
|||||
|
3.5 |
|||||
|
3.95 |
