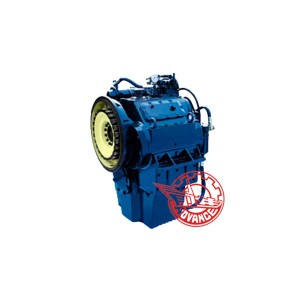

HCM1400 Marine Gearbox Main Data
|
Input speed |
1000-2100r/min |
||
|
Reduction ratio |
1.477、2.023、2.548 |
Trans. capacity |
1.031kw/r/min |
|
3.074 |
0.89kw/r/min |
||
|
Control way |
Push-and-pull flexible shaft, electrically |
||
|
Rated thrust |
110KN |
||
|
Center distance |
340mm |
||
|
L×W×H |
1023×1000×1118mm |
||
|
Net weight |
950kg |
||
|
Flywheel |
SAE21 18 |
||
|
Bell housing |
SAE00 0 |
||
