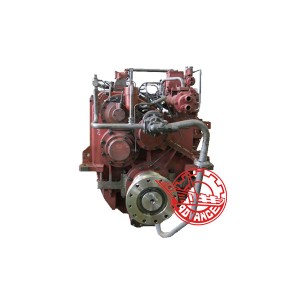

Marine Gearbox HCT1400 Main Data
|
Input speed |
600-1800r/min |
||
|
Reduction ratio |
4、4.511、5.03、5.52、5.97、 |
Trans. capacity |
1.03kw/r/min |
|
6.48、7.03、7.50、8.01 |
|||
|
8.465 |
1kw/r/min |
||
|
8.593 |
0.96kw/r/min |
||
|
8.984 |
0.93kw/r/min |
||
|
9.118 |
0.90kw/r/min |
||
|
9.552 |
0.85kw/r/min |
||
|
Control way |
Push-and-pull flexible shaft, electrically, pneumatically |
||
|
Rated thrust |
220KN |
||
|
Center distance |
550mm |
||
|
L×W×H |
1306x1380x1750mm |
||
|
Net weight |
3700kg |
||
|
Flywheel |
Depend on engine flywheel |
||
|
Bell housing |
No |
||
