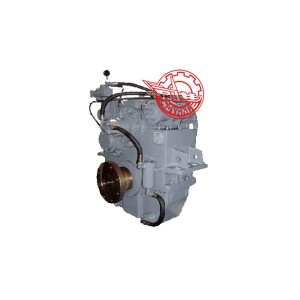

Marine Gearbox HCT1600 Main Data
|
Input speed |
500-1650r/min |
||
|
Reduction ratio |
5.545、5.972、6.585、6.99、7.456、7.9 |
Trans. capacity |
1.213kw/r/min |
|
8.45 |
1.104kw/r/min |
||
|
9 |
1.104kw/r/min |
||
|
9.5 |
0.93kw/r/min |
||
|
Control way |
Push-and-pull flexible shaft, electrically, pneumatically |
||
|
Rated thrust |
250KN |
||
|
Center distance |
585mm |
||
|
L×W×H |
1246x1500x1750mm |
||
|
Net weight |
4200kg |
||
|
Flywheel |
Depend on engine flywheel |
||
|
Bell housing |
No |
||
