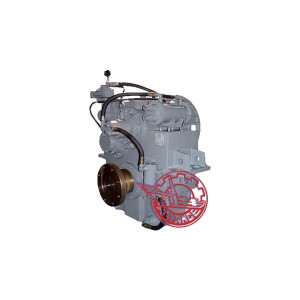

Marine Gearbox HCT400A/1 Main Data
|
Input speed |
1000-2100r/min |
||
|
Reduction ratio |
8.15、8.69、9.27 |
Trans. capacity |
0.331kw/r/min |
|
9.94 |
0.316 kw/r/min |
||
|
10.6 |
0.297kw/r/min |
||
|
11.37 |
0.274 kw/r/min |
||
|
12 |
0.262 kw/r/min |
||
|
14 |
0.204 kw/r/min |
||
|
Control way |
Push-and-pull flexible shaft, electrically, pneumatically |
||
|
Rated thrust |
120KN |
||
|
Center distance |
465mm |
||
|
L×W×H |
869×1100×1275mm |
||
|
Net weight |
1500kg |
||
|
Flywheel |
SAE18、16、14 |
||
|
Bell housing |
SAE0、1 |
||
