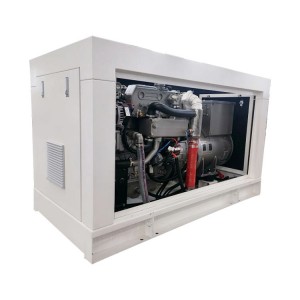

Yacht marine generator
Yacht marine marine generators are the ideal choice for professional sailing and boating. yacht marine generators are compact, light, quiet and very efficient. The generatoring set is housed within a sound insulated capsule which shields against operational noise and vibration. When correctly installed they will operate practically unnoticed.
A quiet generator is of upmost importance when pleasure cruising. yacht marine generators are so compactly constructed that they require only the minimal space onboard.
Main Features
High quality components from the top international manufactures, with high reliability and perfect performance.
Designed for the tough demands of marine applications with superior durability and high uptime.
Technically mature and state of the art in engine development, our engines offer the security and reliability in every-day use.
The maintenance cost is low and the repair cycle is long.
All elements of the generator set are engineered to operate with complete system harmony for optimal performance and maximum efficiency.
Fit with electronic governing for optimal step load acceptance.
Extended service intervals.
|
Model |
Rated Power (kVA/kW) |
Engine |
Alternator |
Control box |
Number of cylinders |
displacement（L） |
Dimension Open Type (mm) |
Weight Open Type (kg) |
Dimension Silent Type (mm) |
Weight Silent Type (kg) |
Emission |
|
CCFJ7J-W1 |
8.8/7 |
3C11G3/8.3kW@1500rpm |
PM0 44E |
HMC9000 |
3 |
1.07 |
968*480*660 |
280 |
1040*560*760 |
330 |
T3 |
|
CCFJ14J-W1 |
17.5/14 |
3C11G1/16.3kW@3000rpm |
PI0 42F |
HMC9000 |
3 |
1.07 |
1000*480*660 |
296 |
1080*560*760 |
350 |
T3 |
|
CCFJ16J-W1 |
20/16 |
4D24G6/18.5kW@1500rpm |
PM1 44E |
HMC9000 |
4 |
2.45 |
1250*630*780 |
455 |
1420*720*880 |
505 |
T3 |
|
CCFJ20J-W1 |
25/20 |
4D24G7/23kW@1500rpm |
PM1 44G |
HMC9000 |
4 |
2.45 |
1300*630*780 |
480 |
1380*720*880 |
530 |
T3 |
|
CCFJ24J-W1 |
30/24 |
4D24G2/28kW@1500rpm |
PM1 44H |
HMC9000 |
4 |
2.45 |
1325*630*780 |
495 |
1400*720*880 |
550 |
T3 |
|
CCFJ28J-W1 |
35/28 |
4D24G1/32kW@1500rpm |
PM1 44J |
HMC9000 |
4 |
2.45 |
1355*630*780 |
508 |
1430*720*880 |
560 |
T3 |
|
CCFJ32J-W1 |
40/32 |
4D24G0/36kW@1500rpm |
UCM 224D |
HMC9000 |
4 |
2.45 |
1390*630*780 |
560 |
1460*720*880 |
600 |
T3 |
|
CCFJ7J-W2 |
8.8/7 |
3D11G3-4/8.3kW@1500rpm |
PM0 44E |
HMC9000 |
3 |
1.07 |
968*480*660 |
280 |
1040*560*760 |
330 |
T4 |
|
CCFJ14J-W2 |
17.5/14 |
3D11G0-4/16.9kW@3000rpm |
PI042 F |
HMC9000 |
3 |
1.07 |
1000*480*660 |
296 |
1080*560*760 |
350 |
T4 |
|
CCFJ16J-W2 |
20/16 |
4D24TG4-4/18.5kW@1500rpm |
PM1 44E |
HMC9000 |
4 |
2.45 |
1250*630*780 |
455 |
1420*720*880 |
505 |
T4 |
|
CCFJ20J-W2 |
25/20 |
4D24TG3-4/23kW@1500rpm |
PM1 44G |
HMC9000 |
4 |
2.45 |
1300*630*780 |
480 |
1380*720*880 |
530 |
T4 |
|
CCFJ24J-W2 |
30/24 |
4D24TG2-4/28kW@1500rpm |
PM1 44H |
HMC9000 |
4 |
2.45 |
1325*630*780 |
495 |
1400*720*880 |
550 |
T4 |
|
CCFJ28J-W2 |
35/28 |
4D24TG1-4/32kW@1500rpm |
PM1 44J |
HMC9000 |
4 |
2.45 |
1355*630*780 |
508 |
1430*720*880 |
560 |
T4 |
|
CCFJ32J-W2 |
40/32 |
4D24TG0-4/36kW@1500rpm |
UCM 224D |
HMC9000 |
4 |
2.45 |
1390*630*780 |
580 |
1460*720*880 |
600 |
T4 |
|
CCFJ8J-W |
10/8 |
3C11G3/A/9.1kW@1500rpm |
PM044 F |
HMC9000 |
3 |
1.07 |
1000*480*660 |
296 |
1080*560*760 |
350 |
Euro III |
|
CCFJ10J-W |
12.5/10 |
3C11G2/A/11.1kW@1800rpm |
PM044 F |
HMC9000 |
3 |
1.07 |
1000*480*660 |
296 |
1080*560*760 |
350 |
Euro III |
|
CCFJ16J-W3 |
20/16 |
3C11G1/A/17.5kW@3000rpm |
PI042 G |
HMC9000 |
3 |
1.07 |
1018*480*660 |
305 |
1100*560*760 |
360 |
Euro III |
|
CCFJ16J-W4 |
20/16 |
4D24G4/A/18.5kW@1500rpm |
PM1 44E |
HMC9000 |
4 |
2.45 |
1250*630*780 |
455 |
1420*720*880 |
505 |
Euro III A |
|
CCFJ20J-W3 |
25/20 |
4D24G2/A/23kW@1500rpm |
PM1 44G |
HMC9000 |
4 |
2.45 |
1300*630*780 |
480 |
1380*720*880 |
530 |
Euro III A |
|
CCFJ24J-W3 |
30/24 |
4D24TG2/A/28kW@1500rpm |
PM1 44H |
HMC9000 |
4 |
2.45 |
1325*630*780 |
495 |
1400*720*880 |
550 |
Euro III A |
|
CCFJ28J-W3 |
35/28 |
4D24TG1/A/32kW@1500rpm |
PM1 44J |
HMC9000 |
4 |
2.45 |
1355*630*780 |
508 |
1430*720*880 |
560 |
Euro III A |
|
CCFJ32J-W3 |
40/32 |
4D24TG0/A/36kW@1500rpm |
UCM 224D |
HMC9000 |
4 |
2.45 |
1390*630*780 |
580 |
1460*720*880 |
600 |
Euro III A |
