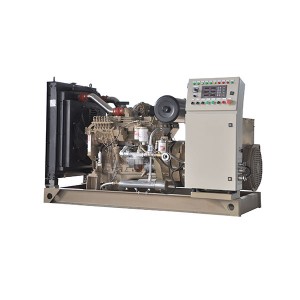

Cummins Emergency Marine Diesel Generator
Abstract
TONTEK POWER emergency marine diesel generator is used in places without connection to the power grid, as emergency power supply if the grid fails, as well as for more complex applications such as peak-lopping, grid support and export to the power grid. It is more advanced, more reliable and more environmental friendly. It can meet the requirements of power consumption in any situations because of the integrated design and completely independent configuration.
Main Features
●High quality components from the top international manufactures, with high reliability and perfect performance.
●Designed for the tough demands of marine applications with superior durability and high uptime.
●Integrated alarm systems can be configured to communicate digitally with ship central data and alarm system.
● All elements of the generator set are engineered to operate with complete system harmony for optimal performance and maximum efficiency.
● The maintenance cost is low and the repair cycle is long .
● It is easy to operate the digital display, which provides diagnostics including engine and alternator information, self-diagnostic features.
|
Generator spec. |
Engine Spec. |
Dimensions |
Weight |
||||
|
Model |
Rated power |
Frenquency/voltage |
Engine model |
Power/Speed |
|||
|
kW/RPM |
L×W×H(mm) |
(kg) |
|||||
|
kW |
kVA |
Hz/ V |
|||||
|
CCFJ40Y-WTP |
40 |
50 |
50/400 |
4BTA3.9-GM47 |
47/1500 |
1810*760*1280 |
1000 |
|
CCFJ64Y-WTP |
64 |
80 |
50/400 |
6BT5.9-GM83 |
83/1500 |
2090*800*1280 |
1100 |
|
CCFJ75Y-WTP |
75 |
93.8 |
50/400 |
6BTAA5.9-GM115 |
115/1500 |
2200*800*1300 |
1450 |
|
CCFJ100Y-WTP |
100 |
125 |
50/400 |
6BTAA5.9-GM115 |
115/1500 |
2200*800*1300 |
1550 |
|
CCFJ120Y-WTP |
120 |
150 |
50/400 |
6CTA8.3-GM155 |
155/1500 |
2480*850*1300 |
1780 |
|
CCFJ150Y-WTP |
150 |
187.5 |
50/400 |
6LTAA8.9-GM |
200/1500 |
2600*950*1350 |
1960 |
|
CCFJ200Y-WTP |
200 |
250 |
50/400 |
NTA855-DM |
240/1500 |
2950*1100*1750 |
2750 |
|
CCFJ250Y-WTP |
250 |
312.5 |
50/400 |
NTA855-DM |
284/1500 |
3020*1100*1750 |
2850 |
|
CCFJ300Y-WTP |
300 |
375 |
50/400 |
K19-DM |
358/1500 |
3550*1300*2350 |
3100 |
|
CCFJ350Y-WTP |
350 |
437.5 |
50/400 |
K19-DM |
410/1500 |
3550*1300*2350 |
3600 |
|
CCFJ400Y-WTP |
400 |
500 |
50/400 |
K19-DM |
448/1500 |
3550*1300*2350 |
3800 |
|
Generator spec. |
Engine Spec. |
Dimensions |
Weight |
||||
|
Model |
Rated power |
Frenquency/voltage |
Engine model |
Power/Speed |
|||
|
kW/RPM |
L×W×H(mm) |
(kg) |
|||||
|
kW |
kVA |
Hz/ V |
|||||
|
CCFJ40Y-WTP |
40 |
50 |
60/440 |
4BTA3.9-GM65 |
65/1800 |
1810*760*1280 |
1000 |
|
CCFJ50Y-WTP |
50 |
62.5 |
60/440 |
4BTA3.9-GM65 |
65/1800 |
1810*760*1280 |
1100 |
|
CCFJ64Y-WTP |
64 |
80 |
60/440 |
6BT5.9-GM100 |
100/1800 |
2020*800*1300 |
1400 |
|
CCFJ75Y-WTP |
75 |
93.8 |
60/440 |
6BT5.9-GM100 |
100/1800 |
2320*800*1300 |
1450 |
|
CCFJ90Y-WTP |
90 |
112.5 |
60/440 |
6BTA5.9-GM120 |
120/1800 |
2380*800*1300 |
1500 |
|
CCFJ100Y-WTP |
100 |
125 |
60/440 |
6BTA5.9-GM120 |
120/1800 |
2420*800*1300 |
1550 |
|
CCFJ120Y-WTP |
120 |
150 |
60/440 |
6CTA8.3-GM175 |
175/1800 |
2480*850*1300 |
1780 |
|
CCFJ150Y-WTP |
150 |
187.5 |
60/440 |
6CTA8.3-GM175 |
175/1800 |
2480*850*1300 |
1830 |
|
CCFJ200Y-WTP |
200 |
250 |
60/440 |
NTA855-DM |
287/1800 |
2950*1100*1750 |
2350 |
|
CCFJ250Y-WTP |
250 |
312.5 |
60/440 |
NTA855-DM |
287/1800 |
3020*1100*1750 |
2500 |
